IT Hardware - 3D PRINTING - S Series - S3
UltiMaker S3
Pengalaman 3D Printing yang Intuitif Dimulai di Sini.
Menggabungkan performa tinggi dan fleksibilitas desain dalam satu platform desktop. Mendukung material komposit canggih serta support yang dapat larut untuk menghasilkan komponen kompleks dengan kualitas profesional.
Dual Extrusion TechnologyProfessional-Grade Print QualitySmart Connected WorkflowWide Material Compatibility
Fitur Utama
Performa Tinggi. Desain yang Ringkas.
Sistem Dual Extrusion untuk Fleksibilitas Material yang Lebih Luas
Kalibrasi Otomatis Presisi Tinggi
Antarmuka Layar Sentuh yang Intuitif dan Responsif
Ekosistem Material Profesional dengan 190+ Pilihan Material
Dimensions
Build volume
230 x 190 x 200 mm (9 x 7.4 x 7.9 inches)
Assembled dimensions
W 394 x D 489 x H 637 mm (W 15.5 x D 19.3 x H 25.1 inches)
Print technology
Fused Deposition Modeling (FDM)
Compatible filament diameter
2.85 mm
Weight
14.4 kg (31.7 lbs)
Maximum power output
350 W
Printer Properties
Layer resolution
0.25 mm nozzle: 150–60 micron | 0.4 mm nozzle: 200–20 micron | 0.6 mm nozzle: 300–20 micron | 0.8 mm nozzle: 600–20 micron
XYZ resolution
6.9, 6.9, 2.5 micron
Feeder type
Dual-geared feeder, reinforced for composite materials
Display
4.7-inch (11.9 cm) color touchscreen
Print core replacement
Swappable print cores
Print head
Dual extrusion print head with an auto-nozzle lifting system, swappable print cores
Nozzle diameters
0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
Operation Diameters
Build speed
< 24 mm³/s
Nozzle temperature
180 - 280 °C
Nozzle heat-up time
< 2 minutes
Operating sound
< 50 dBA
Build plate leveling
Advanced active leveling
Build plate
20 - 140 °C heated glass build plate
Build plate heat-up time
< 4 minutes (from 20 to 60 °C)
Operating ambient temperature
15 - 32 °C (59 - 90 °F)
Non-operating temperature
0 - 32 °C (32 - 90 °F)
Ecosystem
Supplied free software
UltiMaker Cura – print preparation software, UltiMaker Digital Factory – printer management software, UltiMaker Essentials – enterprise-grade online software tools
Supported OS
MacOS, Windows, and Linux
Plugin integration
SolidWorks, Siemens NX, Autodesk Inventor
Supported file types
UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG. Printable formats: G, GCODE, GCODE.gz, UFP
File transfer
Wi-Fi (2.4 GHz), Ethernet, USB
Safety and Compliance
Certification
CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use
More information
Pelajari lebih lanjut tentang keamanan & kepatuhan UltiMaker S3 (https://support.makerbot.com/s/article/1667337922159)

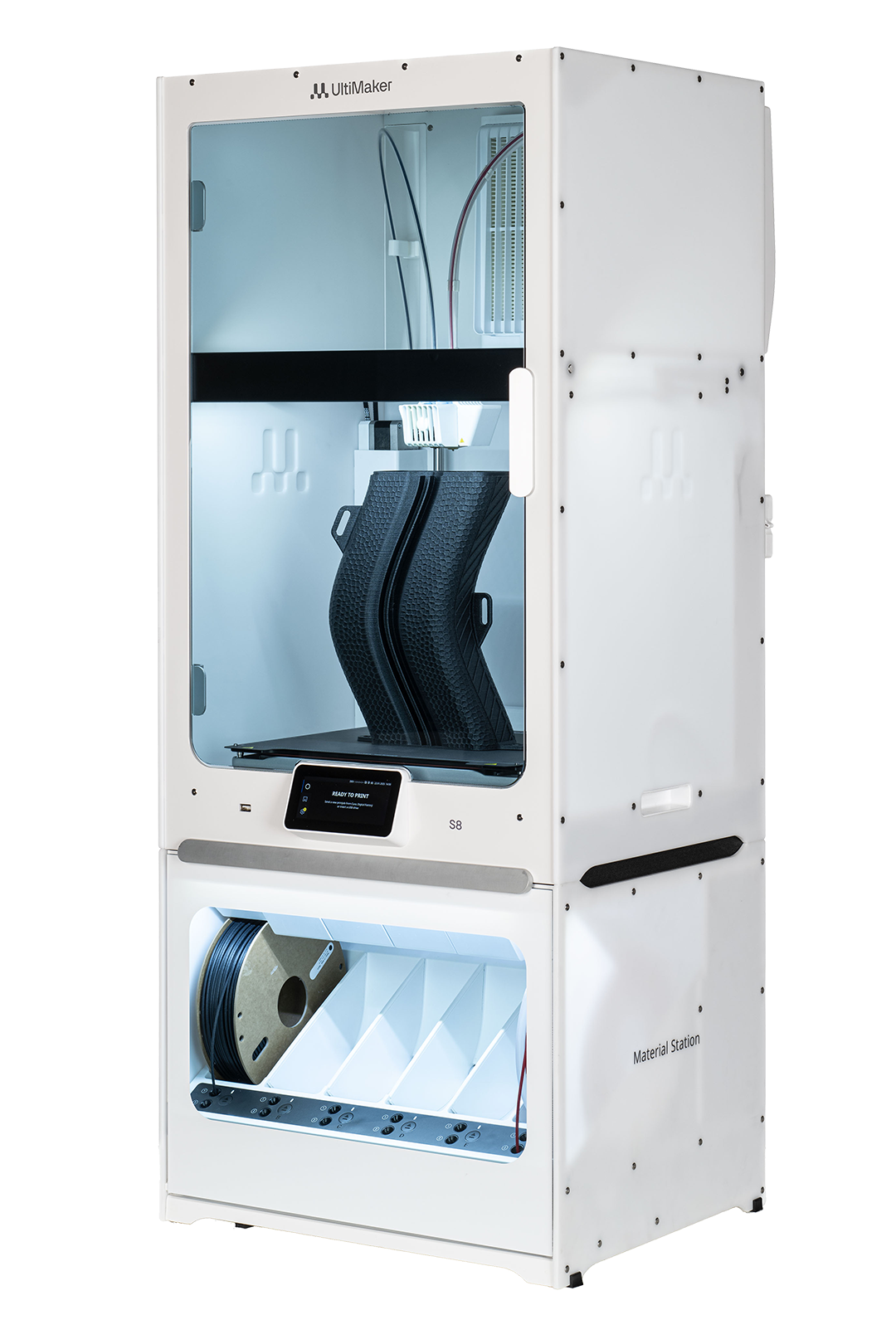

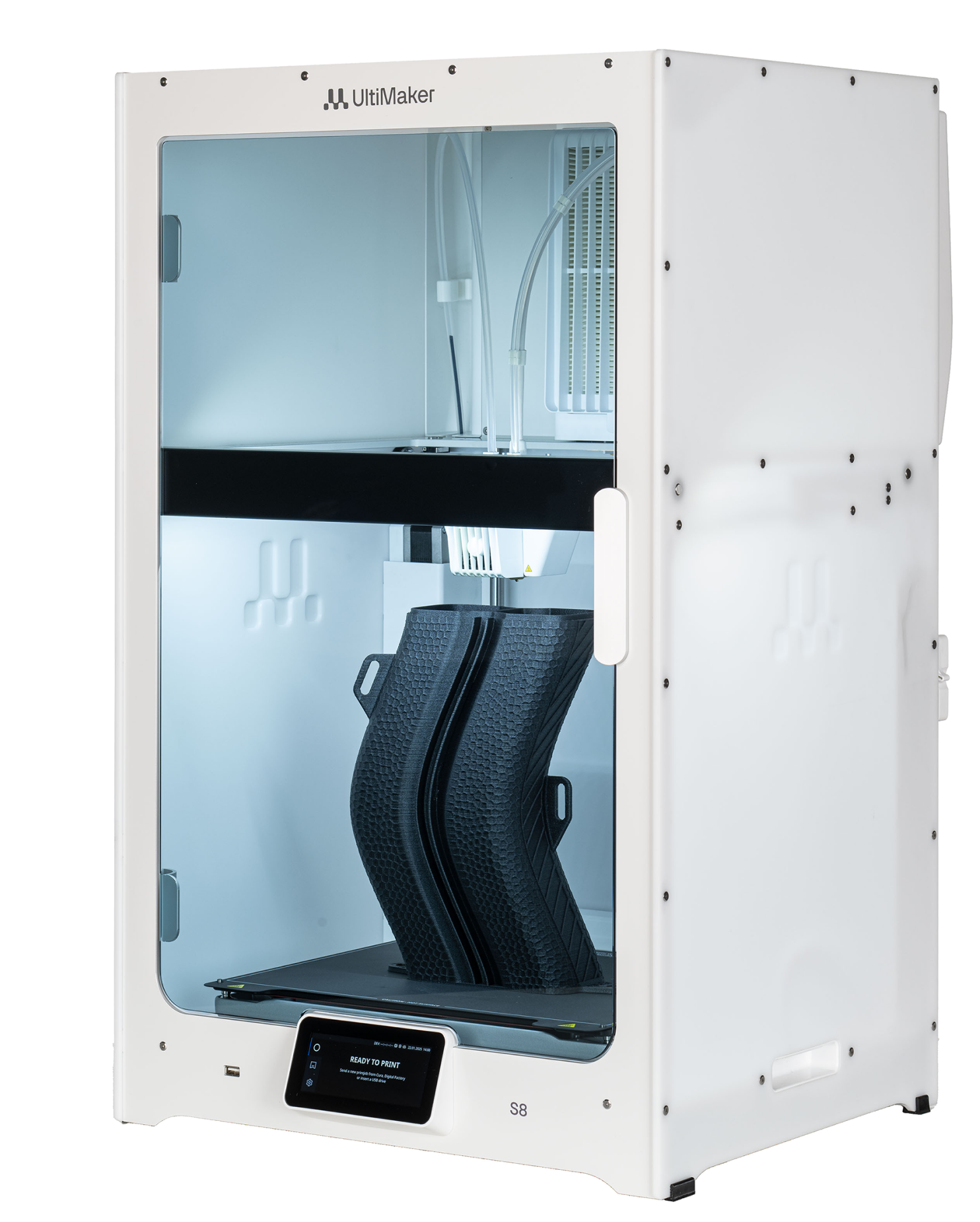

Produk S Series Lainnya
Siap Memulai dengan 3D Printing?
Konsultasikan kebutuhan Anda dengan tim ahli SKI. Kami siap memberikan demo langsung, rekomendasi produk, dan penawaran terbaik untuk organisasi Anda.
